5. Appendices

Mapping SEED blockettes to StationXML placeholder

StationXML to SEED conversion mapping chart

Yazan Suleiman, Tim Ronan, Robert Casey

Last updated Jan 23, 2020

The following chart maps StationXML elements to their equivalent SEED Blockette numbers and fields.  Information external to SEED that may appear in StationXML is largely not shown, except where needed.  The nesting and ordering of XML elements are not shown in this chart, but attributes will be clearly marked with a leading dot and indent.  Blockettes and their data field numbers are referred to in the following way:

B050                        Blockette 50 (Station)

B050.f16                Blockette 50, field 16

B050.f10->B033.f4        Blockette 50, field 10 refers to a Blockette 33 by Abbreviation lookup code, then get value from field 4

Element ‘Network’	Blockette 050	Notes
Attribute ‘code’	B050.f16
Attribute ‘startDate’	Non-existent	Start date must be determined from the earliest time extent of station epochs in the network.
Attribute ‘endDate’	Non-existent	End date must be determined from the earliest time extent of station epochs in the network.
‘Description’	B050.f10->B033.f4	Network description string
Element ‘Comment’	B051/B059	Notes
‘BeginEffectiveTime’	B051.f3 B059.f3	Station = use B051 Channel = use B059
‘EndEffectiveTime’	B051.f4 B059.f4
‘Value’	B051.f5->B033.f4 B059.f5->B033.f4
Element ‘Station’	B050	Notes
Attribute ‘code’	B050.f3
Attribute ‘startDate’	B050.f13
Attribute ‘endDate’	B050.f14
‘Latitude’	B050.f4
‘Longitude’	B050.f5
‘Elevation’	B050.f6
‘Site’.’Name’	B050.f9	‘Site’ is a standalone parent element with a single ‘Name’ element containing the string.
‘CreationDate’	Non-existent	Created from the earliest epoch ‘startDate’ of this station.
Element ‘Channel’	B052	Notes
Attribute ‘locationCode’	B052.f3
Attribute ‘code’	B052.f4
Attribute ‘startDate’	B052.f22
Attribute ‘endDate’	B052.f23
‘Latitude’	B052.f10
‘Longitude’	B052.f11
‘Elevation’	B052.f12
‘Depth’	B052.f13
‘Azimuth’	B052.f14
‘Dip’	B052.f15
‘SampleRate’	B052.f18
‘ClockDrift’	B052.f19
‘CalibrationUnits’.’Name’	B052.f9->B034.f4	‘CalibrationUnits’ is a standalone element with descriptive sub-elements.
‘CalibrationUnits’.’Description’	B052.f9->B034.f5
‘Type’ (can be multiple elements)	B052.f21	Type code mapping: C = ‘CONTINUOUS’ G = ‘GEOPHYSICAL’ T = ‘TRIGGERED’ H = ‘HEALTH’ W = ‘WEATHER’ F = ‘FLAG’ S = ‘SYNTHESIZED’ I = ‘INPUT’ E = ‘EXPERIMENTAL’ M = ‘MAINTENANCE’ B = ‘BEAM’
‘Sensor’.’Description’	B052.f6->B33.f4	‘Sensor’ is a standalone element with a ‘Description’ element for the value string.
Element ‘Response’	B053-B062	Notes
‘InstrumentSensitivity’	Stage 0 only.  See table below.	Cannot use with ‘Polynomial’
‘Polynomial’	See table below
‘Stage’	Groups B053-B062 entries	Refers to a single response stage, containing multiple elements.
Attribute ‘number’	B053.f4 B054.f4 B055.f3 B057.f3 B058.f3 B061.f3 B062.f4	Sequential stage number starting at ‘1’
Element ‘PolesZeros’	B053	Notes
‘PzTransferFunctionType’	B053.f3	Type code mapping: A = ‘LAPLACE (RADIANS/SECOND)’ B = ‘LAPLACE (HERTZ)’ D = ‘DIGITAL (Z-TRANSFORM)’
‘InputUnits’.’Name’	B053.f5->B034.f4
‘InputUnits’.’Description’	B053.f5->B034.f5
‘OutputUnits’.’Name’	B053.f6->B034.f4
‘OutputUnits’.’Description’	B053.f6->B034.f5
‘NormalizationFactor’	B053.f7	Use 1.0 if no entry present
‘NormalizationFrequency’	B053.f8
‘Zero’	Complex number group	Refers to a single zero coefficient entry, containing a real and an imaginary element.
Attribute ‘number’	Sequence in range from B053.f9	Sequential row number starting at ‘0’
‘Zero’.’Real’	B053.f10
‘Zero’.’Imaginary’	B053.f11
Attribute ‘minusError’	B053.f12	Applied to both ‘Real’ and ‘Imaginary’ elements.
Attribute ‘plusError’	B053.f13	Applied to both ‘Real’ and ‘Imaginary’ elements.
‘Pole’	Complex number group	Refers to a single pole coefficient entry, containing a real and an imaginary element.
Attribute ‘number’	Sequence in range from B053.f14	Sequential row number starting at ‘0’
‘Pole’.’Real’	B053.f15
‘Pole.’Imaginary’	B053.f16
Attribute ‘minusError’	B053.f17	Applied to both ‘Real’ and ‘Imaginary’ elements.
Attribute ‘plusError’	B053.f18	Applied to both ‘Real’ and ‘Imaginary’ elements.
Element ‘Coefficients’	B054	Notes
‘CfTransferFunctionType’	B054.f3	Type code mapping: A = ‘ANALOG (RADIANS/SECOND)’ B = ‘ANALOG (HERTZ)’ D = ‘DIGITAL’
‘InputUnits’.’Name’	B054.f4->B034.f4
‘InputUnits’.’Description’	B054.f4->B034.f5
‘OutputUnits’.’Name’	B054.f5->B034.f4
‘OutputUnits’.’Description’	B054.f5->B034.f5
‘Numerator’	B054.f8	Many of these elements can be listed, based on the count found in B054.f7
Attribute ‘minusError’ Attribute ‘plusError’	B054.f9	Both attributes are listed and will have the same value in conversion.
‘Denominator’	B054.f11	Many of these elements can be listed, based on the count found in B054.f10
Attribute ‘minusError’ Attribute ‘plusError’	B054.f12	Both attributes are listed and will have the same value in conversion.
Element ‘ResponseList’	B055	Notes
‘InputUnits’.’Name’	B055.f4->B034.f4
‘OutputUnits’.’Name’	B054.f5->B034.f4
‘ResponseListElementType’.’Frequency’	B055.F7
‘ResponseListElementType’.’Amplitude’	B055.F8
Attribute ‘minusError’ Attribute ‘plusError’	B055.F9	Both attributes are listed and will have the same value in conversion.
‘ResponseListElementType’.’Phase’	B055.F10
Attribute ‘minusError’ Attribute ‘plusError’	B055.F11	Both attributes are listed and will have the same value in conversion.
Element ‘Decimation’	B057	Notes
‘SampleRate’	B054.f4
‘DecimationFactor’	B054.f5
‘DecimationOffset’	B054.f6
‘EstimatedDelay’	B054.f7
‘Correction’	B054.f8
Elements ‘InstrumentSensitivity’ & ‘StageGain’	B058	Notes
‘Value’	B058.f4
‘Frequency’	B058.f5
‘InputUnits’.’Name’	B053.f5->B034.f4 B054.f5->B034.f4 B061.f6->B034.f4	Only used in ‘InstrumentSensitivity’.  Use the stage 1 Blockette field value only.  Cannot be used for Polynomial response.
‘InputUnits.’Description’	B053.f5->B034.f5 B054.f5->B034.f5 B061.f6->B034.f5	Only used in ‘InstrumentSensitivity’
‘OutputUnits’.’Name’	B053.f6->B034.f4 B054.f6->B034.f4 B061.f7->B034.f4	Only used in ‘InstrumentSensitivity’.  Use the very last (highest) stage Blockette field value only.  Cannot be used for Polynomial response.
‘OutputUnits’.’Description’	B053.f6->B034.f5 B054.f6->B034.f5 B061.f7->B034.f5	Only used in ‘InstrumentSensitivity’
Element ‘FIR’	B061	Notes
‘Symmetry’	B061.f5	Type code mapping: A = ‘None’ B = ‘ODD’ C = ‘EVEN’
‘InputUnits’.’Name’	B061.f6->B034.f4
‘InputUnits’.’Description’	B061.f6->B034.f5
‘OutputUnits’.’Name’	B061.f7->B034.f4
‘OutputUnits’.’Description’	B061.f7->B034.f5
‘NumeratorCoefficient’	B061.f9
Attribute ‘i’	Sequence in range from B061.f8	Sequential row number starting at ‘0’
Element ‘Polynomial’	B062	Notes
‘InputUnits’.’Name’	B062.f5->B034.f4
‘InputUnits’.’Description’	B062.f5->B034.f5
‘OutputUnits’.’Name’	B062.f6->B034.f4
‘OutputUnits’.’Description’	B062.f6->B034.f5
‘ApproximationType’	B062.f7	Type code mapping: M = ‘MACLAURIN’
‘FrequencyLowerBound’	B062.f9
‘FrequencyUpperBound’	B062.f10
‘ApproximationLowerBound’	B062.f11
‘ApproximationUpperBound’	B062.f12
‘MaximumError’	B062.f13
‘Coefficients’	B062.f15
Attribute ‘number’	Sequence in range from B062.f14	Sequential row number starting at ‘0’
Attribute ‘minusError’ Attribute ‘plusError’	B062.f16	Both attributes are listed and will have the same value in conversion.
Document Structure	B011	Notes
	B011.F3 B011.F4 B011.F5	[IRIS] Controls the order that stations are presented when converting from dataless to StationXML. Generated using the station order when converting from StationXML to dataless.

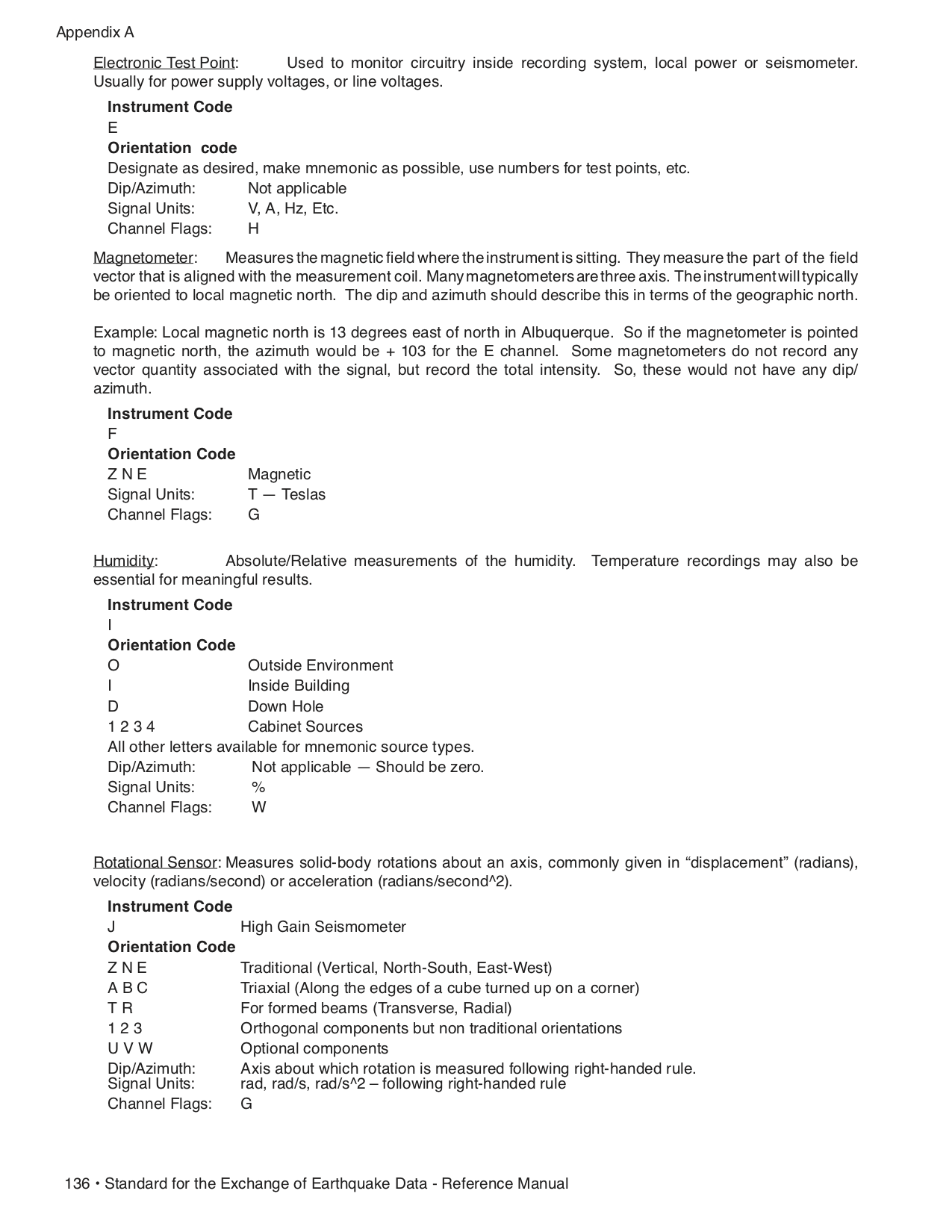

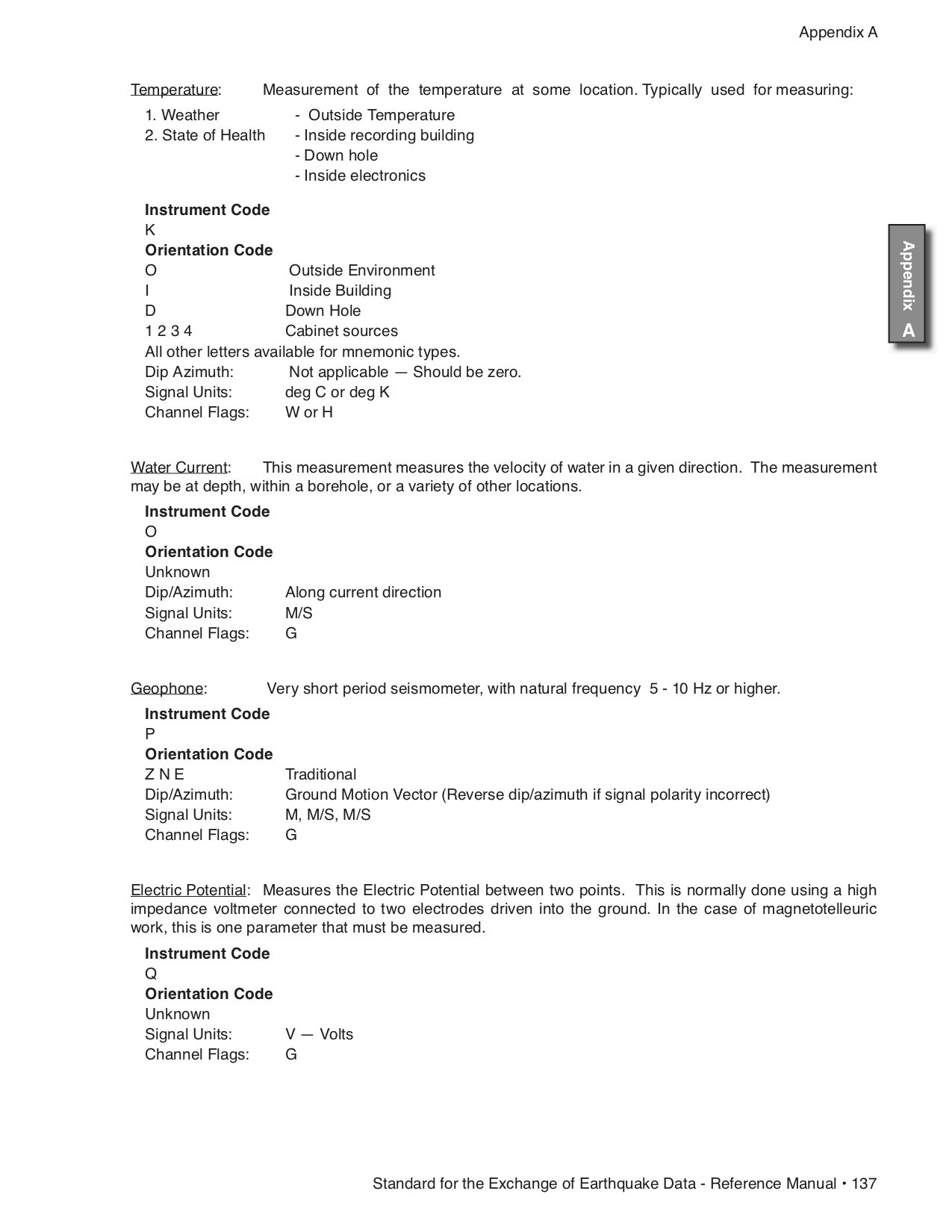

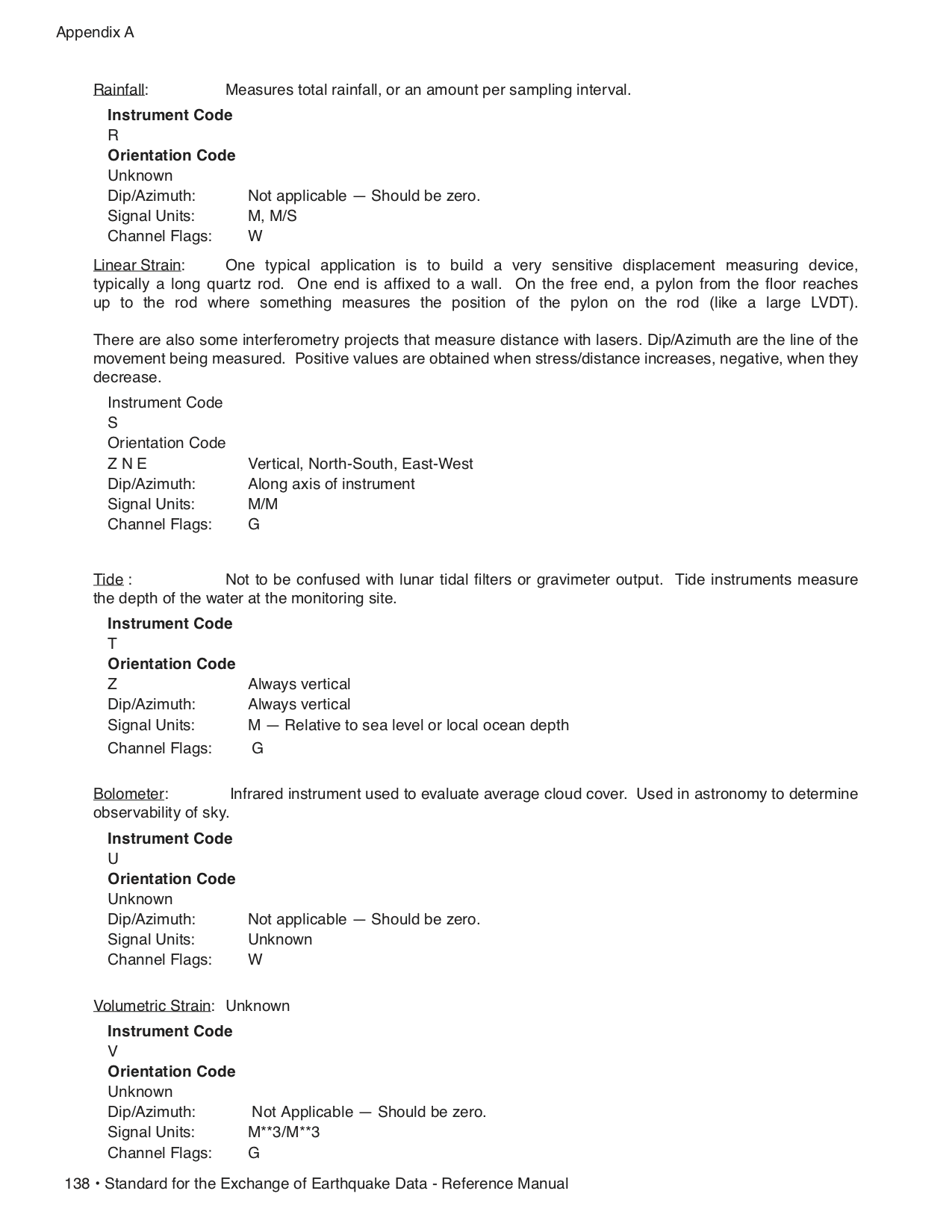

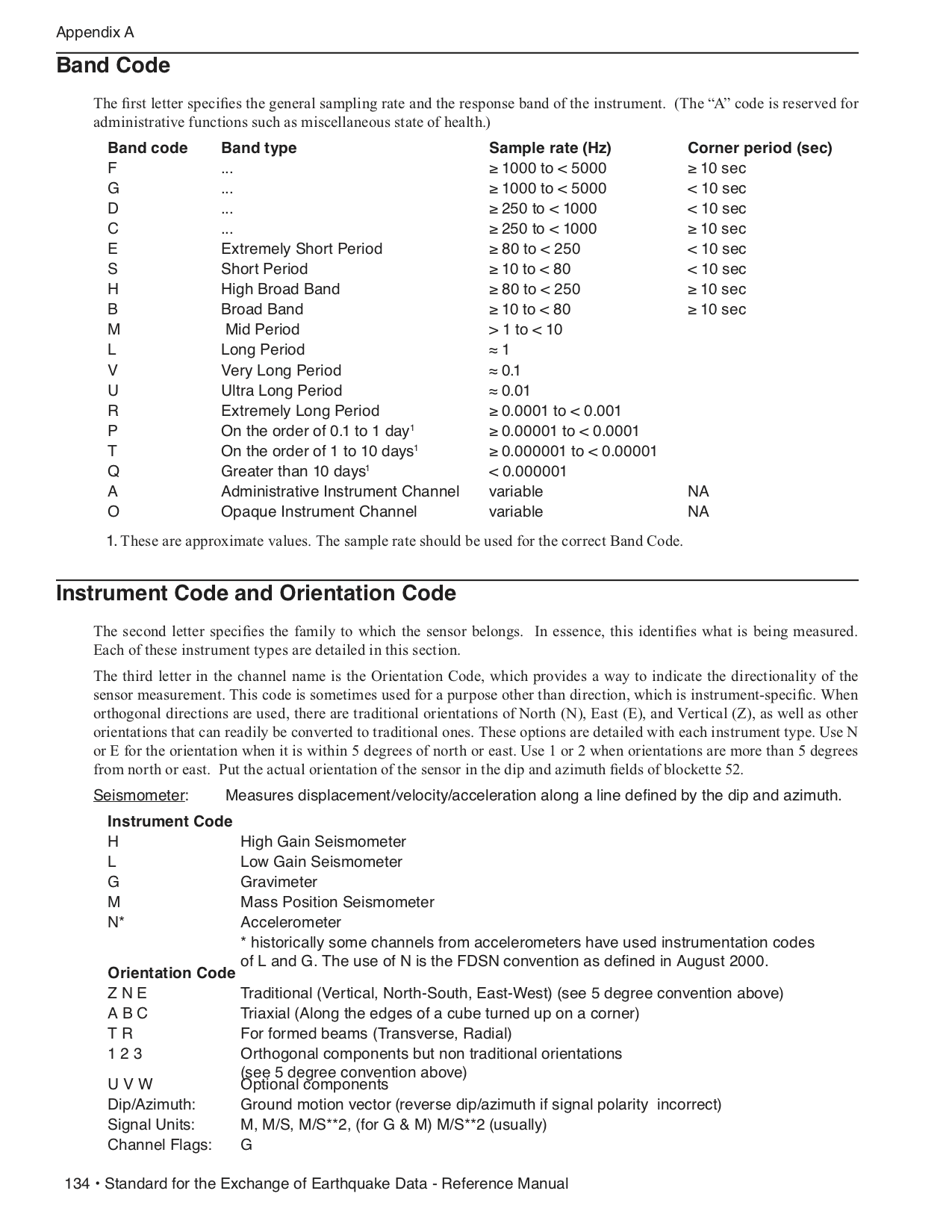

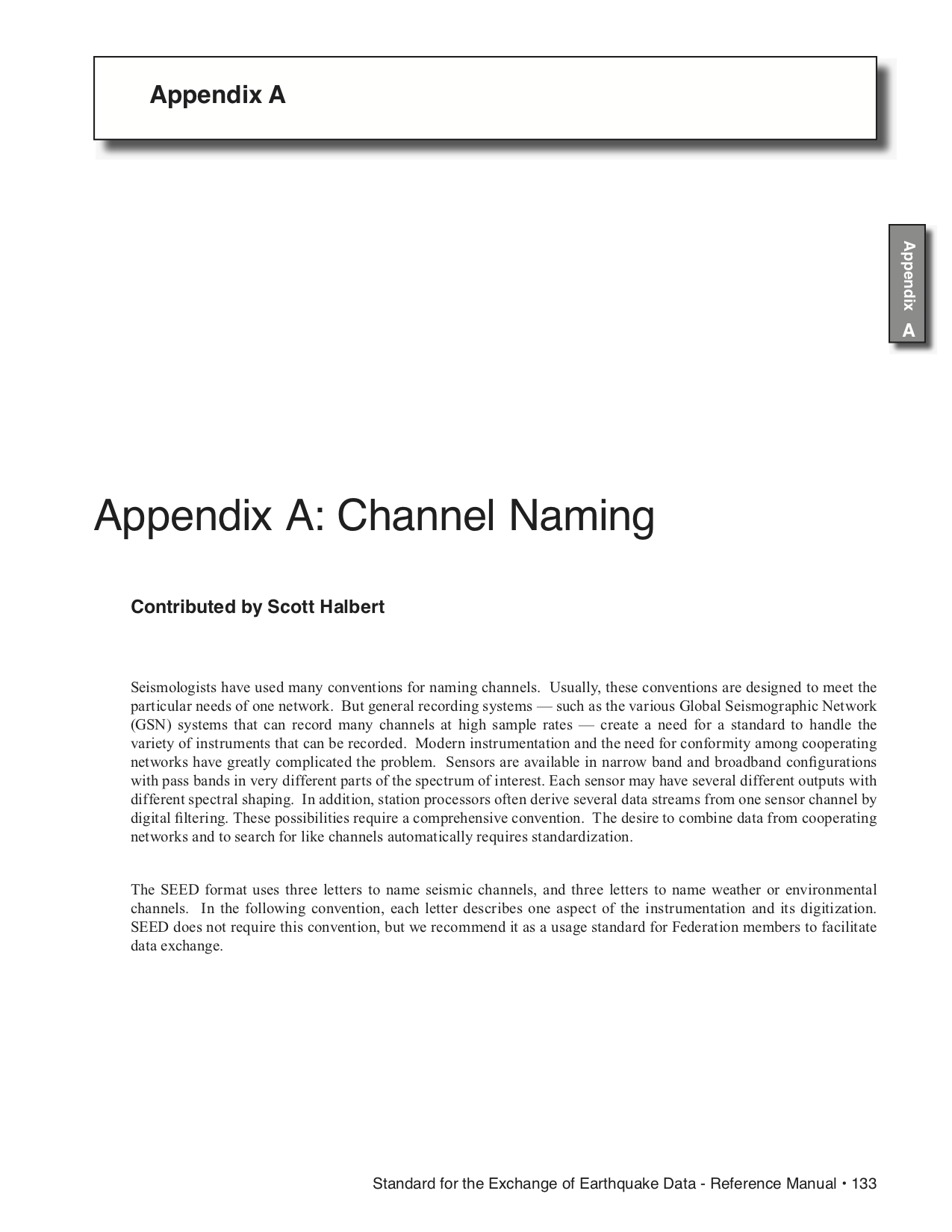

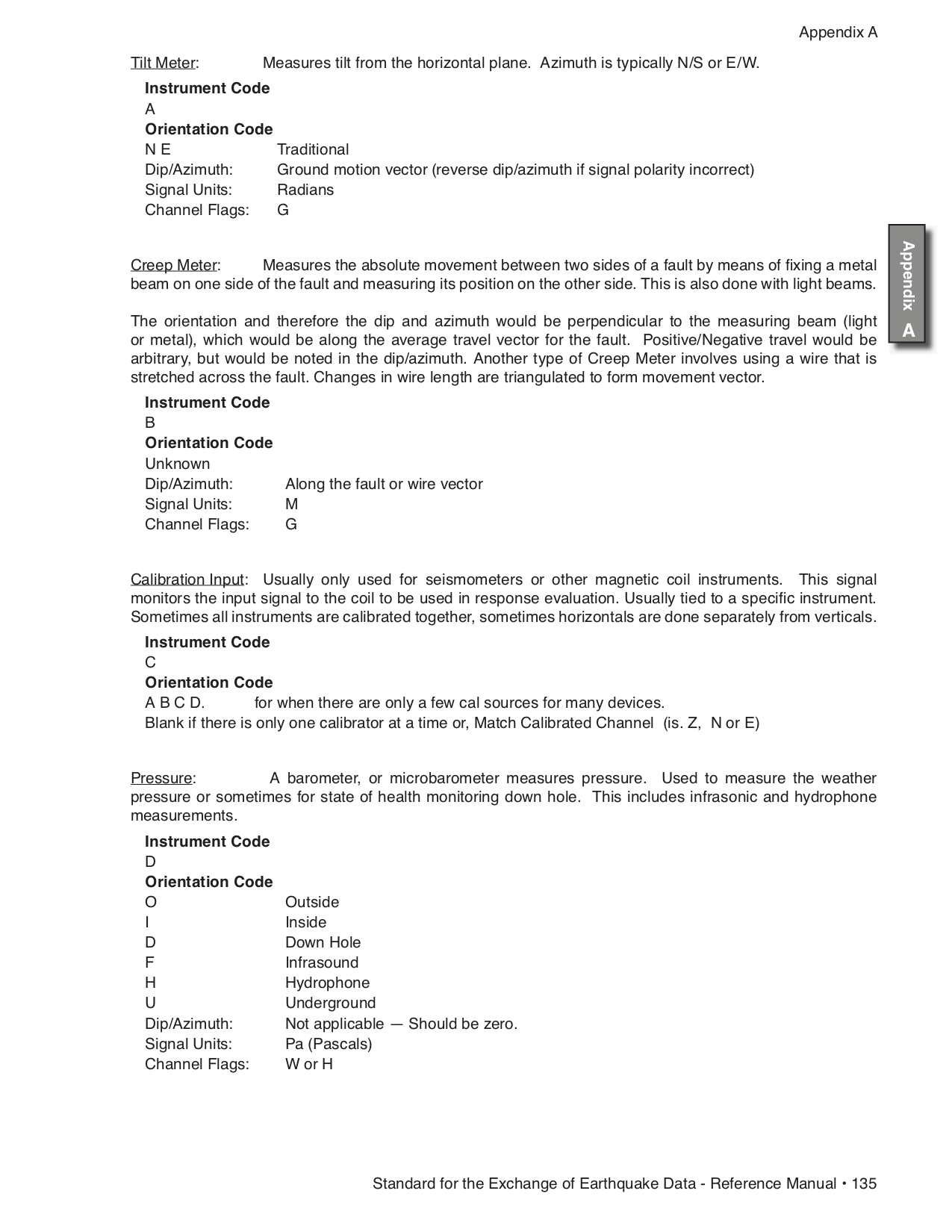

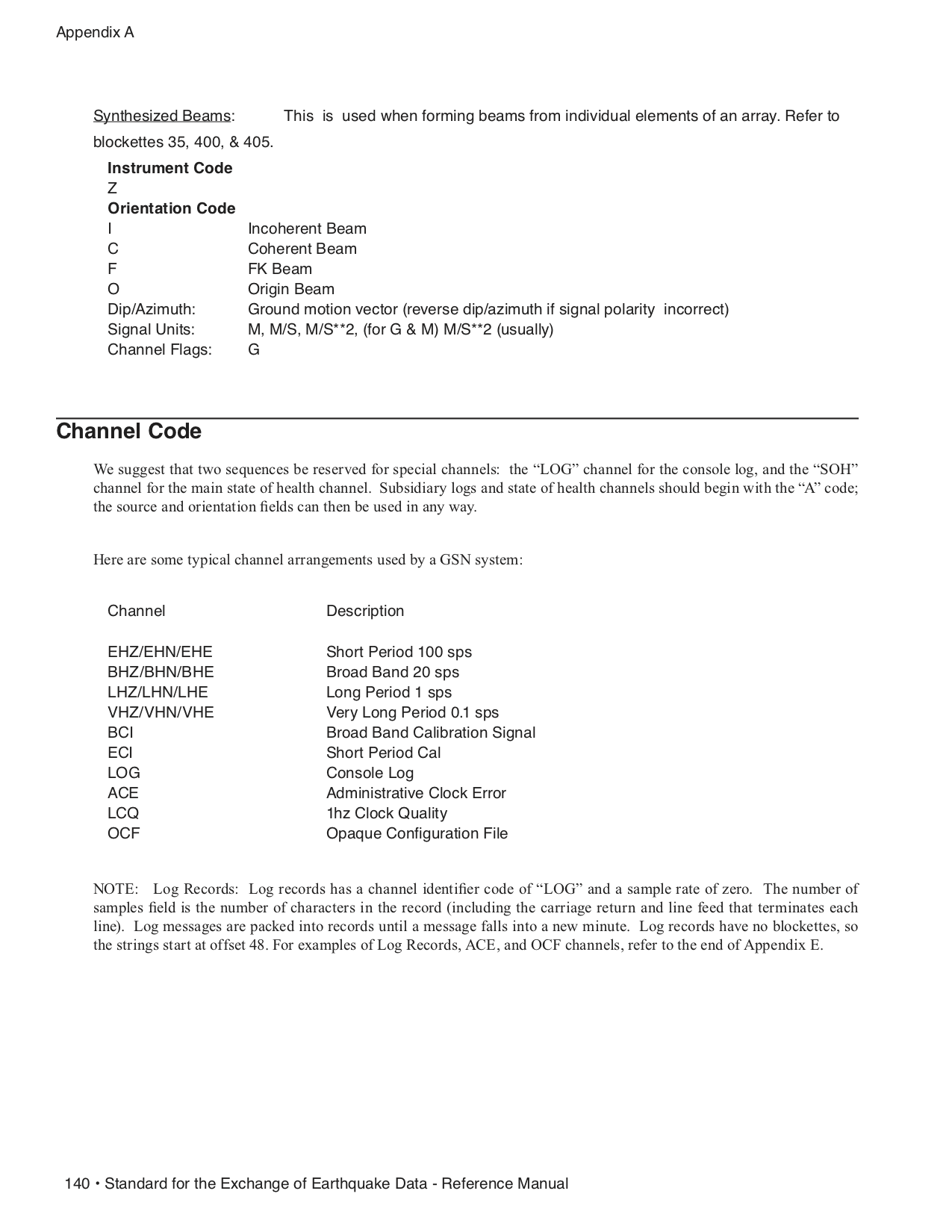

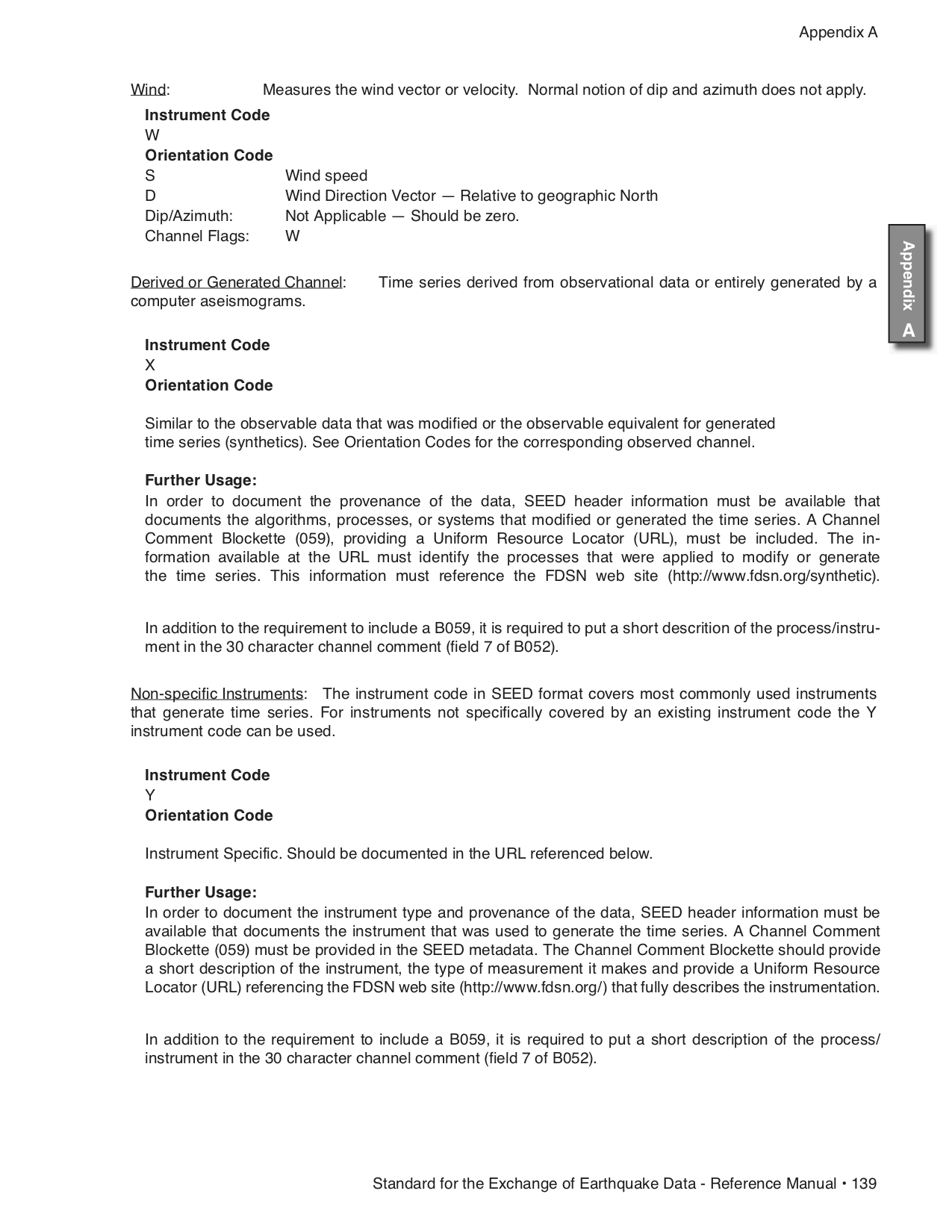

Channel Naming Conventions placeholder
